Round Bars

---------- Stainless Steel ----------


RANGE : 3.17 MM TO 350 MM DIA
Stainless Steel :
ASTM / ASME SA 276 TP 304 , 304L , 309S , 309H, 310S , 316 , 316L , 316 TI , 317 , 321 , 347 , 410 , 420 , 430 ,431 , 440A ,B & C. , 446
ASTM / ASME SA 479 TP 304 , 304L , 304H, 309S , 309H, 310S , 310H , 316 , 316H , 316L , 316 TI , 317 , 321 , 321H , 347 , 347 H , 410, 430 ,431 & 444.

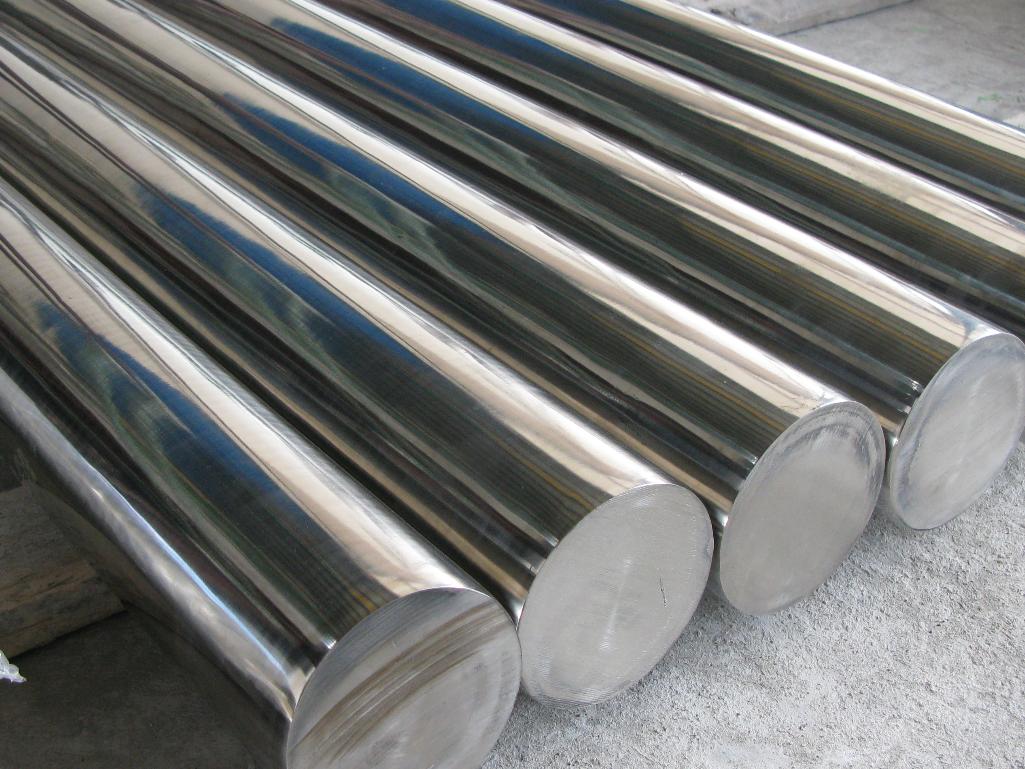

---------- Duplex Steel ----------


Duplex Steel : ASTM / ASME SA 276 UNS NO. S 31803 , S 32205 , S 32550 , S 32750 , S 32760.

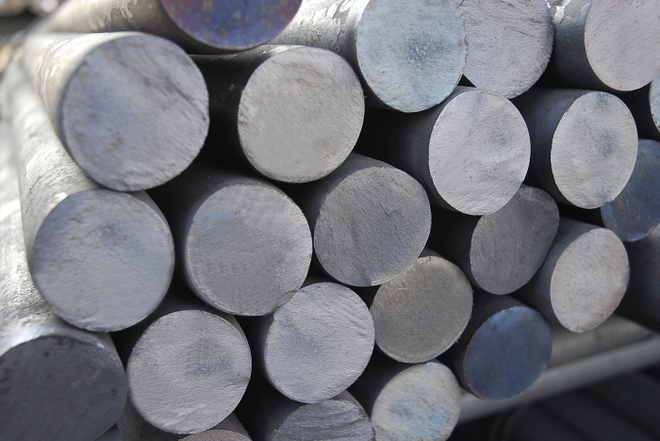

---------- Carbon & Alloy Steel ----------


RANGE : 1 MM TO 350 MM DIA
Carbon Steel :
ASTM / ASME A 105
Alloy Steel : ASTM / ASME A 182 GR F 5, F 9 , F 11 , F 12 , F 22 , F 91.
ASTM / ASME A 729 GR B 11 & B 22.

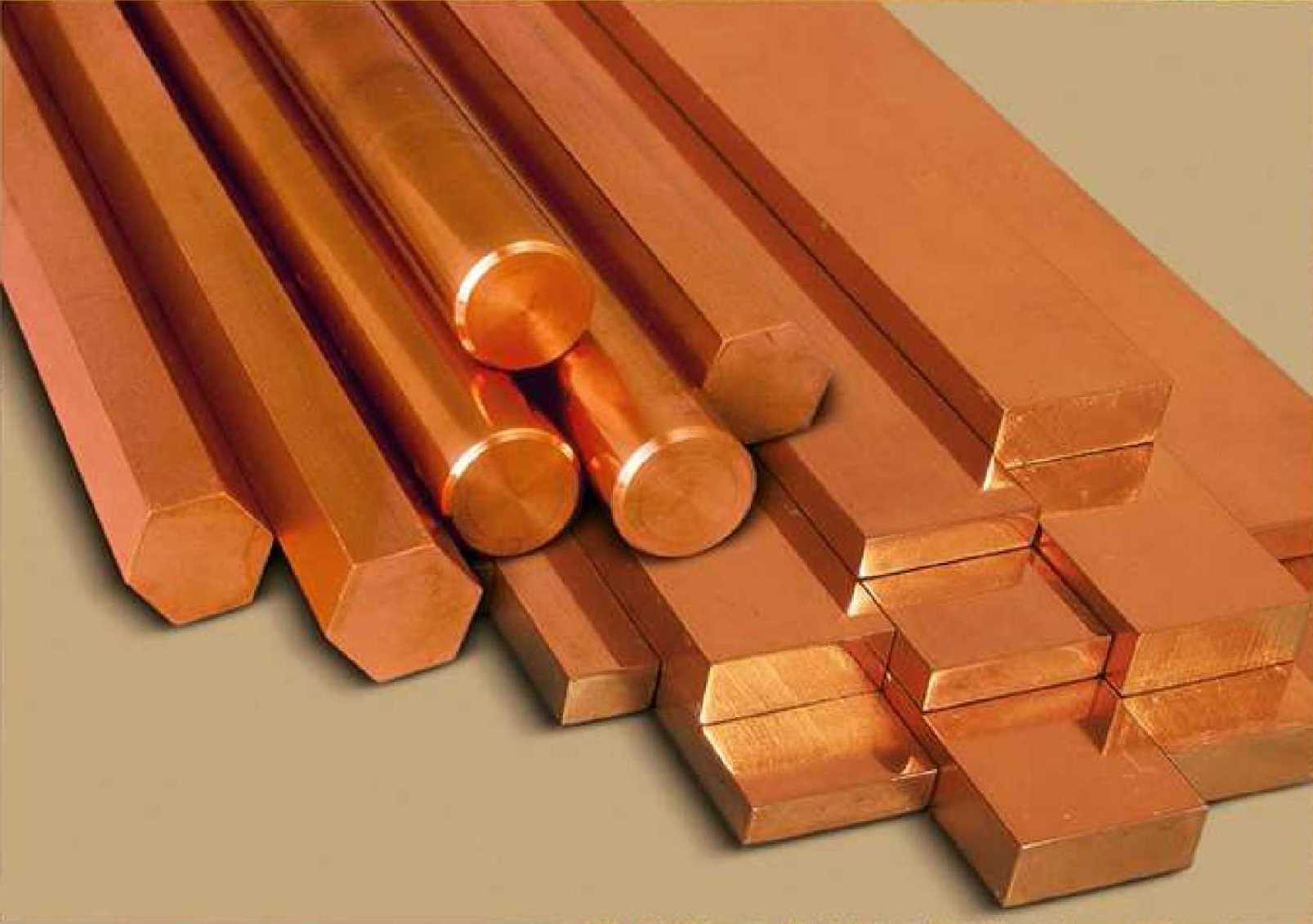

---------- Nickel & Copper Alloy ----------


Nickel Alloy :
ASTM / ASME SB 160 UNS 2200 ( NICKEL 200 ) / UNS 2201 (NICKEL 201 )
ASTM / ASME SB 164 UNS 4400 (MONEL 400 )
ASTM / ASME SB 425 UNS 8825 (INCONEL 825) ASTM / ASME SB 166 UNS 6600 (INCONEL 600 ) / UNS 6601 ( INCONEL 601 )
ASTM / ASME SB 446UNS 6625 (INCONEL 625)
ASTM / ASME SB 574 UNS 10276 ( HASTELLOY C 276 )
ASTM / ASME SB 472 UNS 8020 ( ALLOY 20 / 20 CB 3 )


---------- Hastelloy ----------


Grades : Hastelloy C-22, Hastelloy C-276, Hastelloy C-2000
Type :
Hastelloy Round Bar
Hastelloy Bright Bar
Hastelloy Polish Bar
Hastelloy Black Round Bar
Hastelloy Forged Bar
Hastelloy Forged Round Bar
Hastelloy Hex Bar
Hastelloy Forged Hex Bar
Hastelloy Flat Bar
Hastelloy Rod


---------- Inconel ----------


Grades : Inconel 600, Inconel 601, Inconel 625, Inconel 625LCF, Inconel 686, Inconel 718, Inconel 800, Inconel 825, Inconel X-750
Standard : ASTM, ASME, API, AISI, BS, ANSI, DIN, JIS, MSSP, NACE

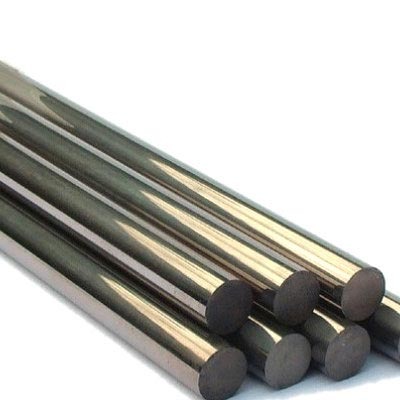

---------- Incoloy ----------


Grades : Incoloy 800, incoloy 825, Incoloy 925, Incoloy a-286, Incoloy DS
STANDARD : ASTM B408, AMS 5766, ISO 9723, ISO 9724, BS 3076NA15, BS 3075NA15, EN 10095, VdTüV 412 & 434
Type :
Round Bar
Bright Bar
Polish Bar
Black Round Bar
Forged Bar
Forged Round Bar
Hex Bar
Forged Hex Bar
Flat Bar
Rod

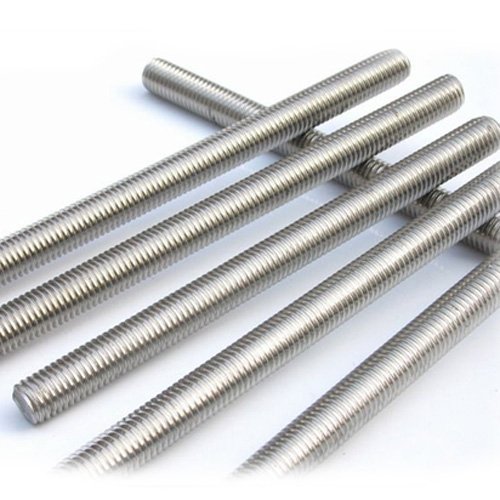

---------- Monel ----------


Grades : Monel 400, Monel k500
Standard: ASTM / ASME SB 164

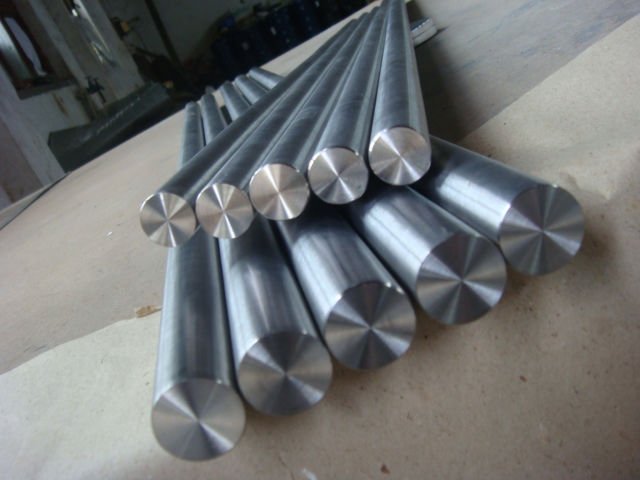

---------- Titanium ----------


Specifications : Titanium round bar
Grade: Gr1,Gr2,Gr3,Gr5,Gr7
Standard: ASTM B348, ASTM F136, ASTM F67, AMS 4928
Specification:
1. Grade : Gr1, Gr2, Gr4 ,Gr5,Ti-6AL4V ELI,Gr.7, Gr.9, Gr.12
2. Standard : ASTM B348, ASTM F136, ASTM F67, AMS 4928
3. payment : T/T or L/C at sight
4. MOQ : 10 kg
5. package : Ply wooden case or as request
6. delivery time : 7- 30 days after confirmed
7. applications: industry, glasses so on.


Chemical Requirements :

  N C H Fe O AI V Pa Mo Ni Ti
Gr 1 0.03 0.08 0.015 0.020 0.18           bal
Gr 2 0.03 0.08 0.015 0.30 0.25           bal
Gr 3 0.05 0.08 0.015 0.30 0.35           bal
Gr 4 0.05 0.08 0.015 0.50 0.40           bal
Gr 5 0.05 0.08 0.015 0.40 0.20 5.5~6.75 3.5~4.5       bal
Gr 7 0.03 0.08 0.015 0.30 0.25     0.12~0.25     bal
Gr 9 0.03 0.08 0.015 0.25 0.15 2.5~3.5 2.0~3.0       bal
Gr 12 0.03 0.08 0.015 0.30 0.25       0.2~0.4 0.6~0.9 bal

Tensile Requirements :


grade Tensil
strength(min)		 Yeild
strength(min)		 Elongation(%)
ksi MPa ksi MPa
1 35 240 20 138 24
2 50 345 40 275 20
3 65 450 55 380 18
4 80 550 70 483 15
5 130 895 120 828 10
6 50 345 40 275 20
7 90 620 70 438 15
8 70 438 50 345 18


---------- Tantalum ----------



Specifications : Tantalum bar
Material: Ta
Grade: RO5200, RO5400, RO5252(Ta-2.5W), RO5255(Ta-10W)
Standard:ASTM B 365
Tantalum products/Tantalum bars
Material: Ta-1
Grade: RO5200, RO5400, RO5252(Ta-2.5W), RO5255(Ta-10W)
Standard:ASTM B 365
Tantalum bar Tantalum- tungsten alloy bar
Material: RO5200, RO5400, RO5252(Ta-2.5W), RO5255(Ta-10W)
Standard: As per ASTM B 365-98
Purity:
>=99.95% or 99.99% Tantalum rod Tantalum alloy rod
Standard,ASTM B365-98
Dimension,Dia3~100mm
Material,RO5200,RO5400,RO5252(Ta-2.5W)


Diameter Diameter Tolerance Length Tolerance
forging rod Extruded Rods rolling rod ground rod
3.0-4.5 ±0.05   ±0.05   500-1500 + 5
4.5-6.5 ±0.10   ±0.10   500-1500 + 5
6.5-10.0 ±0.15   ±0.15   400-1500 + 5
10-16 ±0.20   ±0.20   300-1200 + 5
16-18 ±1.0     ±0.30 200-2000 + 20
18-25 ±1.5 ±1.0   ±0.40 200-2000 + 20
25-40 ±2.0 ±1.5   ±0.50 150-4000 + 20
40-50 ±2.5 ±2.0   ±0.60 100-3000 + 20
50-65 ±3.0 ±2.0   ±0.80 100-1500 + 20
